Every year, the big game requires a variety of exterior graphics and installations to transform the host venue into the Super Bowl venue. Working with the event coordinators, SGH evaluated the structural design for several large displays used in Super Bowls XLVIII and XLIX.
Our work included the analysis of aluminum-framed structures and the design of structural strengthening of existing components, as required to meet the requirements of the governing code. We also designed concrete and steel ballast to ensure that the pieces would not slide or overturn under wind loads. Highlights of the projects are noted below.
Super Bowl XLVIII, George Washington Bridge Display
- Design of banner rigging and temporary light trusses
- Design of custom connections to avoid damage to bridge steel and finishes
- Evaluation of potential for ice formation on banner

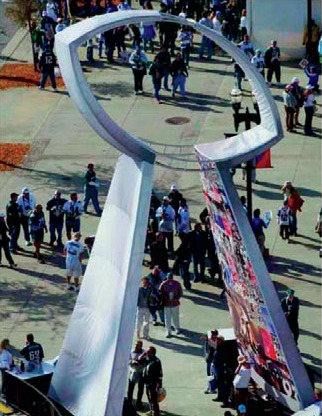

Super Bowl XLVIII, Legacy Trophy outside MetLife Stadium

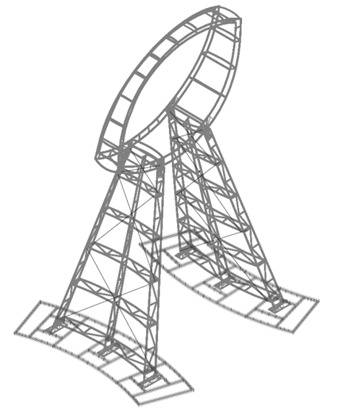

- Design of 35 ft tall aluminum truss structure
- Design of steel ballast at base of structure

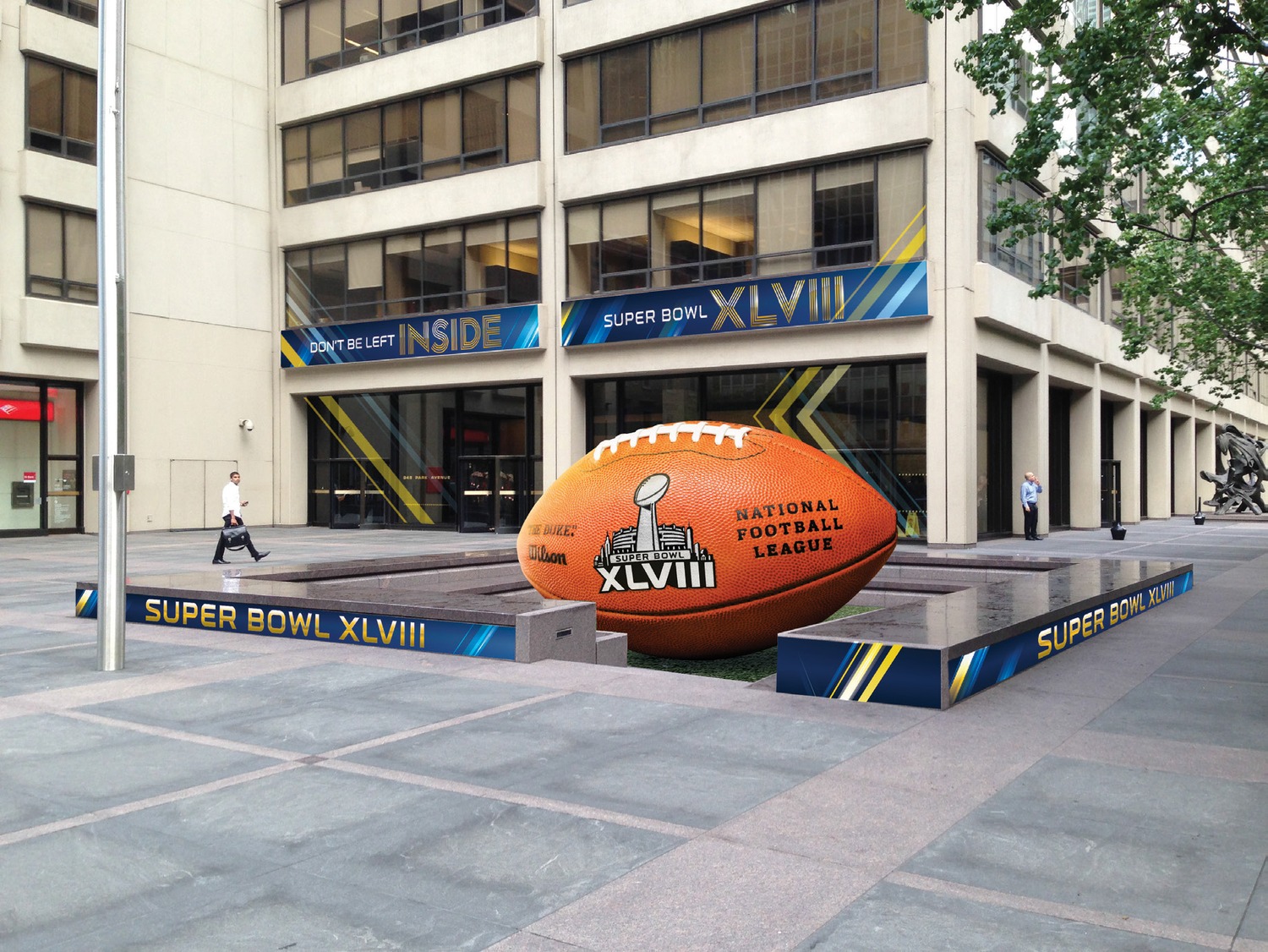

Super Bowl XLVIII, Football outside MetLife Stadium

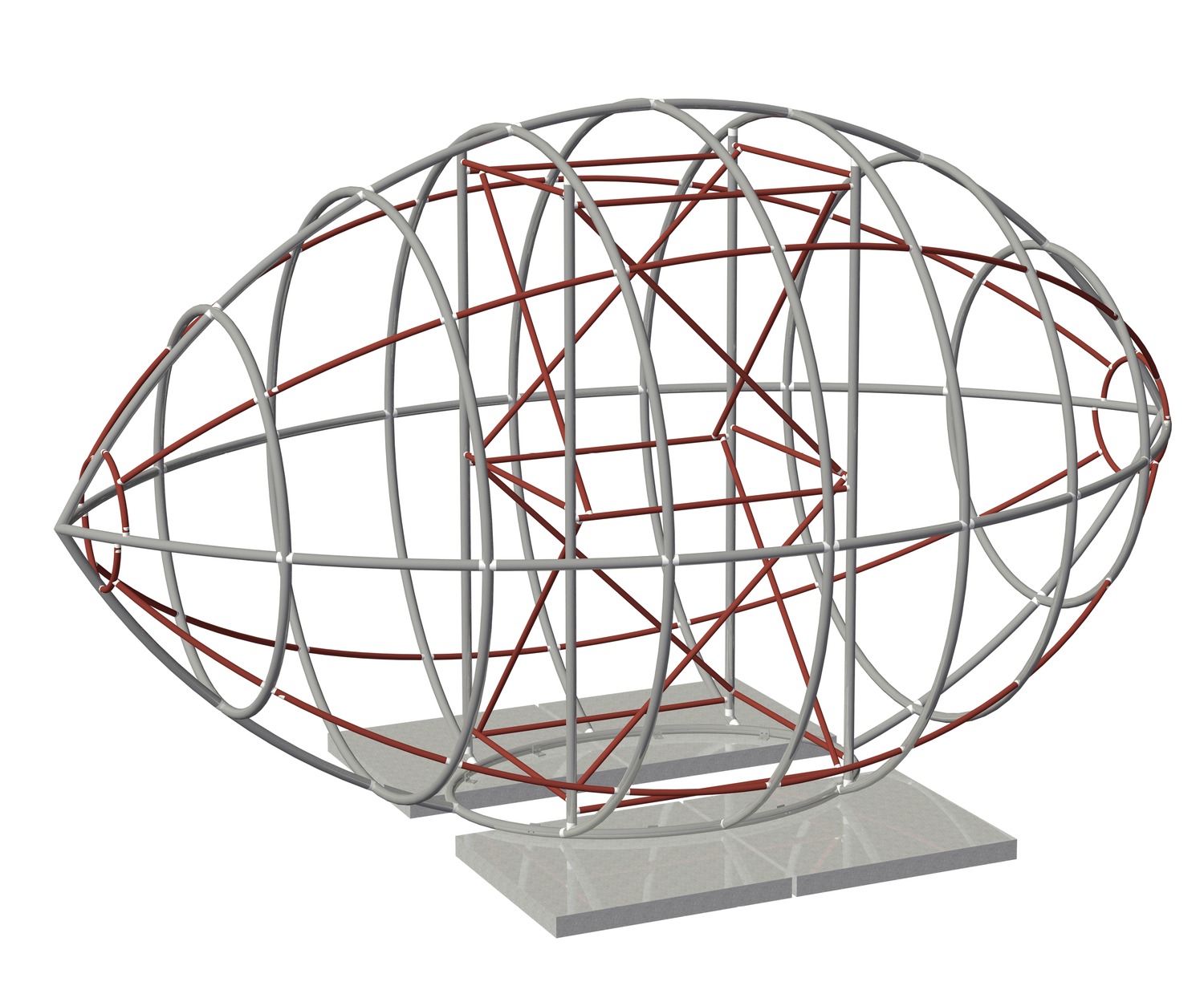

- Design of 20 ft x 12 ft aluminum-framed sculpture
- Creation of a “high wind action plan” for monitoring wind speeds and removing fabric above threshold wind speeds

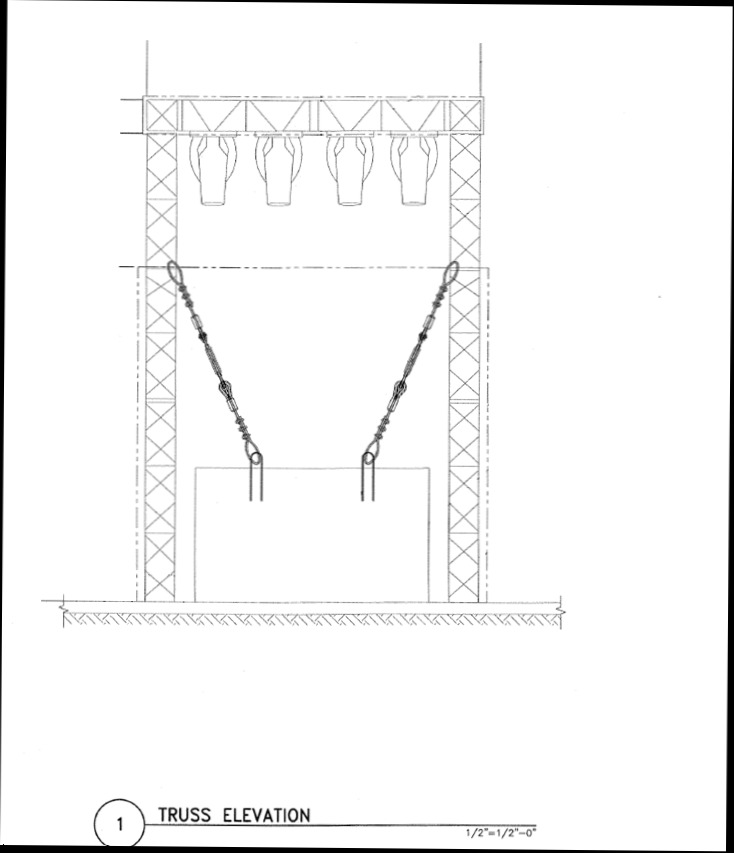

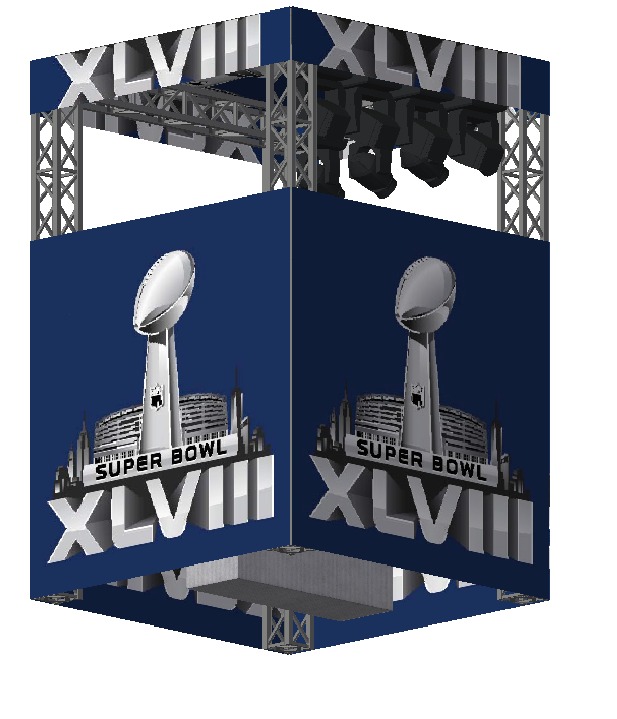

Super Bowl XLVIII, Plaza Light Truss outside MetLife Stadium
- Design of 15 ft tall aluminum light truss at Super Bowl fan plaza
- Design of concrete ballast and anchorage details

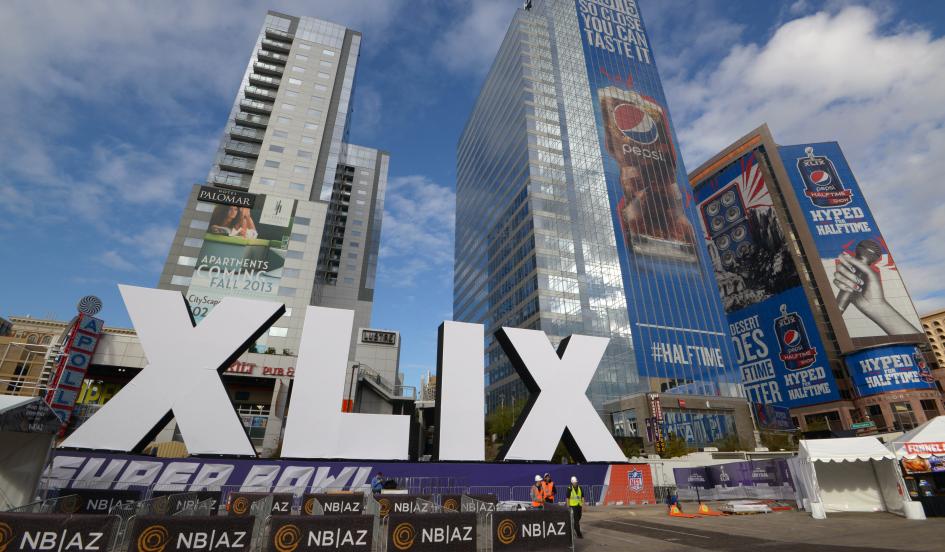

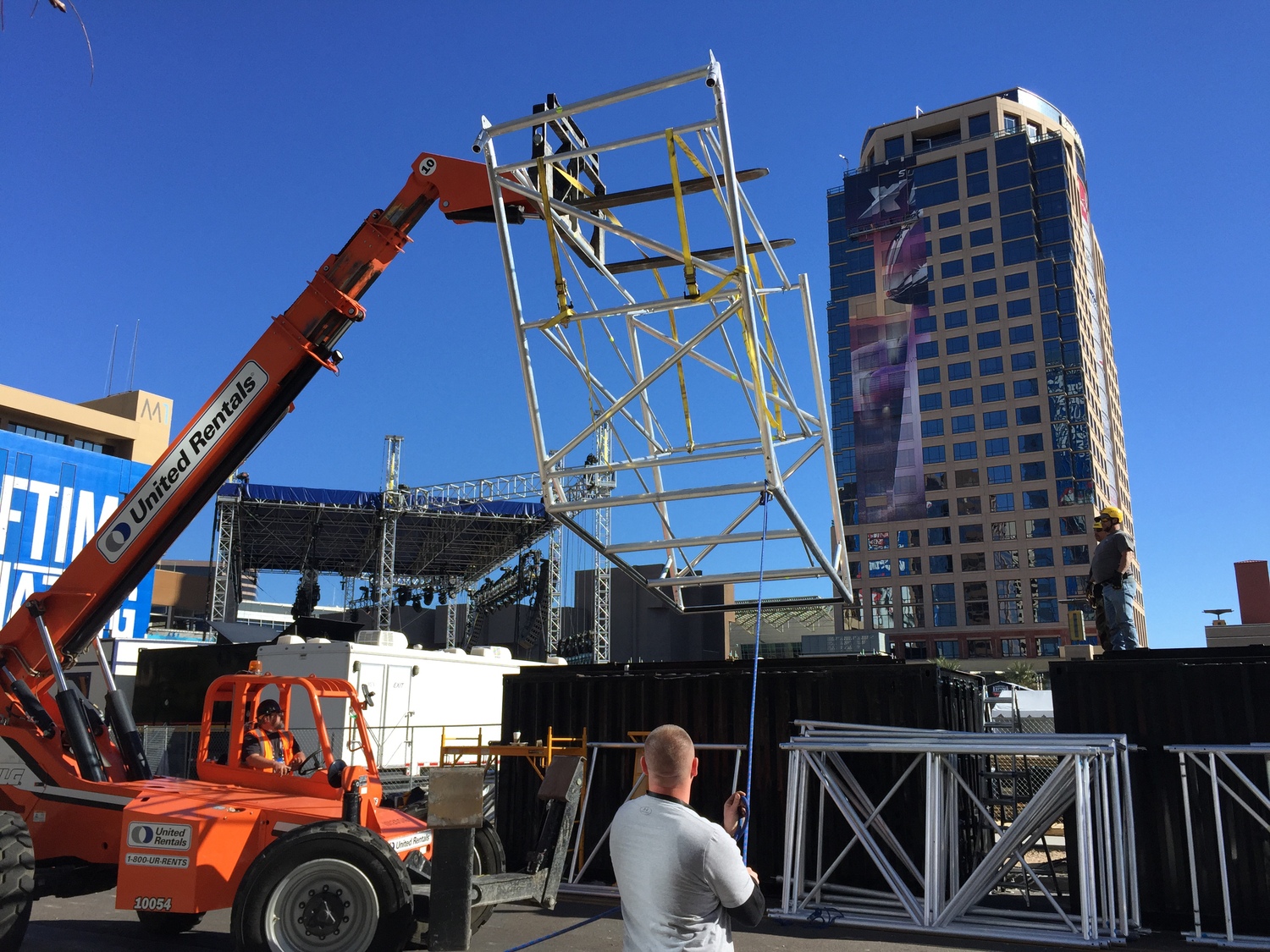

Super Bowl XLIX, Roman Numerals Installation in Phoenix, AZ
- Design of 40 ft tall aluminum -framed roman numerals
- Design of steel plate ballast and anchorage details
