Charlottesville, VA

Apex Plaza

Scope/Solutions

The new mixed-use building on Garrett Street provides innovative office spaces in the heart of downtown Charlottesville. The project team implemented renewable design approaches—sustainably harvested mass timber, solar energy, and green roofs—aligned with the mission of the anchor tenant, Apex Clean Energy. When it opens, the building will be the tallest timber-framed structure in Virginia and is expected to produce more energy than it consumes. SGH provided structural, building enclosure, and fire life safety consulting services for the project.

As the structural engineer of record, SGH designed the structure and collaborated with the fabricator to create concealed connections for the timber. The structure features:

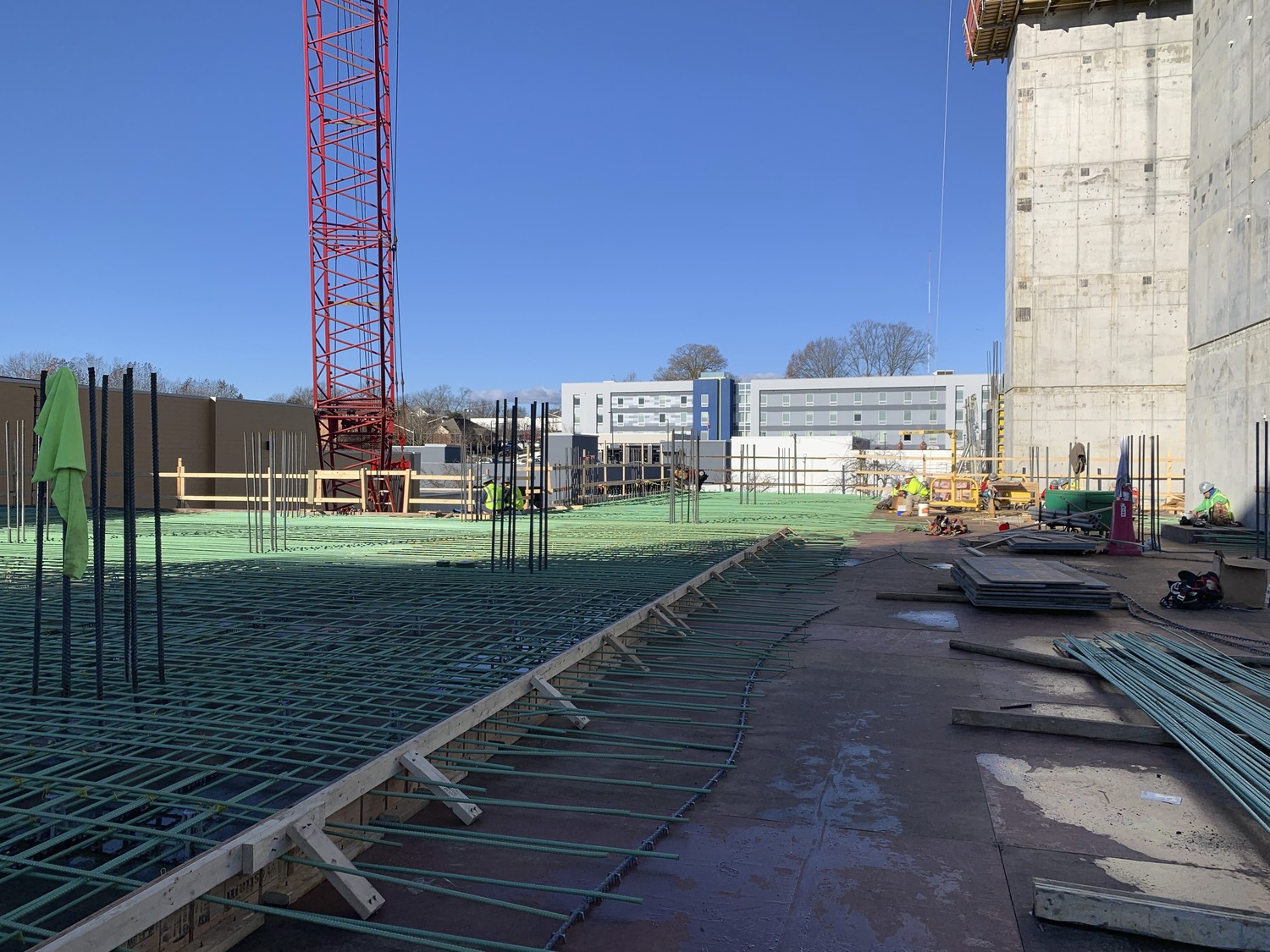

  • Four-story concrete podium with post-tensioned concrete transfer beams
  • Six-story, 187,000 sq ft mass timber superstructure, including mass timber braced‑frames and cross-laminated timber floors
  • Steel-framed rooftop canopy structure supporting a large solar panel array

SGH assisted with the building enclosure design, including roofing, fenestration, facade systems, and below-grade waterproofing. Highlights include:

  • Helping select window and curtain wall systems for specific applications
  • Defining curtain wall performance and testing requirements and outlining building enclosure criteria for the specifications
  • Comparing single-ply roofing assemblies and advising on concrete coatings
  • Developing details, including transitions between adjacent systems

We consulted on fire life safety requirements and compliance. Highlights include:

  • Helping obtain variances for the occupied rooftop terrace and high-rise mass timber application
  • Preparing a compliance approach report, including a smoke control rational analysis for a proposed atrium
  • Developing fire life safety drawings documenting means-of-egress and the location of fire-rated walls

Project Summary

completion-date

2022

Completion Date
building-size

300K

Project Size
award-winner

Award

Winner
Solutions
New Construction
Services
Building Enclosures | Performance & Code Consulting | Structures
Markets
Commercial
Client(s)
William McDonough + Partners
Specialized Capabilities
Building Design | Facades & Glazing | Roofing & Waterproofing | Fire Life Safety & Accessibility
